Oracle-VPS에 NMP + Guacamole 설치

자료 보관용 입니다.



Oracle 무료 VPS에  NPM과  Guacamole를 설치하였습니다.



문제는 NPM에서 Guacamole쪽 reverse proxy가 안되어서 이리저리 찾아보다 처리한 내용입니다.

( # 8443 포트로 reverse proxy - http 502 오류 발생시 - 가 동작하지 않는 경우 사용해 주시면 됩니다. )



# 작업 디렉토리 /data

# 관리자 권한 작업

# docker의 network는 bridge 드라이버를 사용하며 user_bride 명명하여 NPM 및 Guacamole 에서 사용



1. 네트워크 생성

# 네트워크 생성
docker network create --driver=bridge \
 --opt com.docker.network.bridge.name:user_bridge \
 --opt com.docker.network.bridge.enable_icc:true \
 --opt com.docker.network.bridge.host_binding_ipv4:0.0.0.0 \
 --opt com.docker.network.bridge.enable_ip_masquerade:true user_bridge



2. NPM (Nignx Proxy Manager) 설치 - docker-compose 사용

version: "3.9"


networks:
  default:
    name: user_bridge
    external: true
  bridge:
    external: true

services:
  app:
    image: 'jc21/nginx-proxy-manager:latest'
    restart: unless-stopped
    ports:
      # These ports are in format <host-port>:<container-port>
      - '80:80' # Public HTTP Port
      - '443:443' # Public HTTPS Port
      - '81:81' # Admin Web Port
      # Add any other Stream port you want to expose
      # - '21:21' # FTP
    environment:
      DB_MYSQL_HOST: "db"
      DB_MYSQL_PORT: 3306
      DB_MYSQL_USER: "사용자아이디"
      DB_MYSQL_PASSWORD: "사용자비밀번호"
      DB_MYSQL_NAME: "npm"
      # Uncomment this if IPv6 is not enabled on your host
      # DISABLE_IPV6: 'true'
    extra_hosts:
      - "host.docker.internal:host-gateway"
    volumes:
      - ./data:/data
      - ./letsencrypt:/etc/letsencrypt
    depends_on:
      - db

  db:
    image: 'jc21/mariadb-aria:latest'
    restart: unless-stopped
    environment:
      MYSQL_ROOT_PASSWORD: '사용자비밀번호'
      MYSQL_DATABASE: 'npm'
      MYSQL_USER: '사용자아이디'
      MYSQL_PASSWORD: '사용자비밀번호'
    volumes:
      - ./data/mysql:/var/lib/mysql



3. Guacamole 설치 - docker-compose 사용

version: '3.9'

# networks
# create a network 'guacnetwork_compose' in mode 'bridged'

networks:
  default:
    name: user_bridge
    external: true
  bridge:
    external: true

# services
services:
  # guacd
  guacd:
    container_name: guacd_compose
    image: guacamole/guacd
    restart: always
    volumes:
    - ./drive:/drive:rw
    - ./record:/record:rw
  # postgres
  postgres:
    container_name: postgres_guacamole_compose
    environment:
      PGDATA: /var/lib/postgresql/data/guacamole
      POSTGRES_DB: guacamole_db
      POSTGRES_PASSWORD: '사용자비번'
      POSTGRES_USER: guacamole_user
    image: postgres:13.4-buster
    restart: always
    volumes:
    - ./init:/docker-entrypoint-initdb.d:z
    - ./data:/var/lib/postgresql/data:Z

  # guacamole
  guacamole:
    container_name: guacamole_compose
    depends_on:
    - guacd
    - postgres
    environment:
      GUACD_HOSTNAME: guacd
      POSTGRES_DATABASE: guacamole_db
      POSTGRES_HOSTNAME: postgres
      POSTGRES_PASSWORD: '사용자비번'
      POSTGRES_USER: guacamole_user
    image: guacamole/guacamole
    links:
    - guacd
    ports:
## enable next line if not using nginx
##    - 8080:8080/tcp # Guacamole is on :8080/guacamole, not /.
## enable next line when using nginx
    - 8080/tcp
    restart: always

############ optional ##############
#  # nginx
#  nginx:
#   container_name: nginx_guacamole_compose
#   restart: always
#   image: nginx
#   volumes:
#   - ./nginx/ssl/self.cert:/etc/nginx/ssl/self.cert:ro
#   - ./nginx/ssl/self-ssl.key:/etc/nginx/ssl/self-ssl.key:ro
#   - ./nginx/nginx.conf:/etc/nginx/nginx.conf:ro
#   - ./nginx/mysite.template:/etc/nginx/conf.d/default.conf:ro
#   ports:
#   - 8443:443
#   links:
#   - guacamole
#   # run nginx
#   command: /bin/bash -c "nginx -g 'daemon off;'"
## nginx-debug-mode
##   command: /bin/bash -c "nginx-debug -g 'daemon off;'"
####################################################################################

# Guacamole는 git에서 설치 파일을 받아 prepare.sh 실행 후 위의 내용과 비교하여 docker-compose.yml 파일을 편집하는 것을 추천합니다.

# Gucamole git 으로 부터 설치

git clone "https://github.com/boschkundendienst/guacamole-docker-compose.git"
cd guacamole-docker-compose
./prepare.sh
# docker-compose.yml 편집
docker-compose up -d

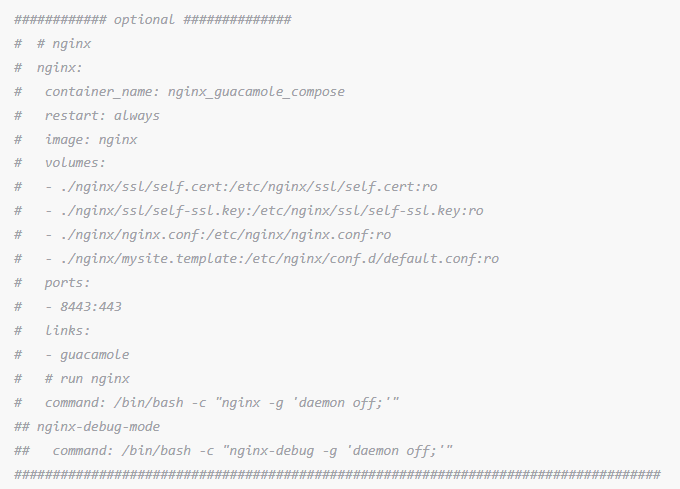

# 아래 이미지는 기본으로 docker-compose에 묶여 있는 nginx reverse proxy 입니다. (주석처리 후 NPM 사용)



4. NPM 설정 ( guacamole설치용 docker-compose.yml 에 포함된 nginx 에서 설정을 가져옴)

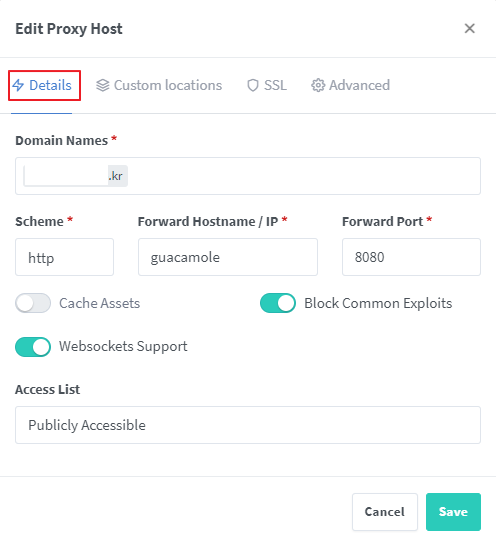

Details 설정

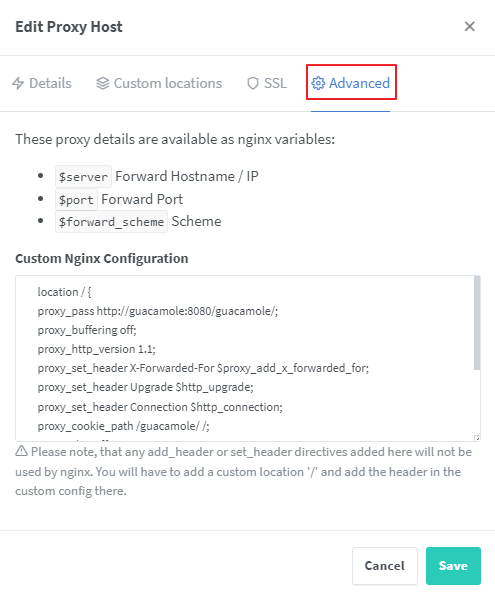

Advanced 설정

    location / {
    proxy_pass http://guacamole:8080/guacamole/;
    proxy_buffering off;
    proxy_http_version 1.1;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $http_connection;
    proxy_cookie_path /guacamole/ /;
    access_log off;
    # allow large uploads (default=1m)
    # 4096m = 4GByte
    client_max_body_size 4096m;
}



더 좋은 방법을 아시는 분은 댓글 부탁드립니다.
